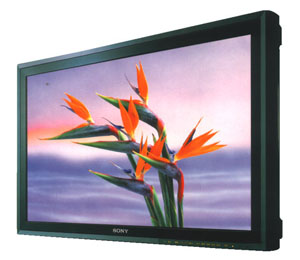

SONY PFM-500A2WE

  • flexible flat information communication solutions
HIGH BRIGHTNESS
PFM-500A2WE uses the latest developed screen with high bright panel, so you can enjoy the clearer and more bright images. There is a  filter glass on the  front board in the plasma display that may reduce the light reflection and diffusion.
advanced scan converter
  built-in advanced scan converter includes phase excursion exampling, 4 lines vertical compensation tech. For instance it provides more accurate image quality. Either current signal  (NTSCPALHDTV) or the computer signal that horizontal frequency is between 15.6-100.0kHz can be reproduced automatically by scan converter. 4 lines vertical compensation tech decomposes the original image to another 4 channels signals, then produces compensating lines for each, and composite these multi signals to optimize the image at last.
PFM serial outstanding performance
  expand slot
  PFM has stronger expand function and flexibility via using optional adapter. If optional plug-and -play adapter added in , PFM serial plasma will expand its application range.
easy to mount
  PFM serial plasma monitor can be easy to mount with the handles on its back and the flexible designed mount.
  display advantage
  This monitor uses the latest display device that you are limited to the imagination.
  compact design
PFM serial monitor is so light and  compact as to get the perfect image with little space.
  clear flat image
For the linearity of the light pixels the image can be reproduced accurately without any distortion.
  wide viewing angle

160º
viewing angle anywhere. The high definition image quality is suitable for many people at any situration.

  anti-magnetism

   Panel display shall not appear excursion because of
 non-unified hue    even if  mounted in the place with strong magnetic field. This phenomena is caused by the magnetism components of the machine such as motor, speaker or high density line circle. But differing from the old cathode cube, panel display has no influence.




specification

※ definition:852×480 pixels
※ pixel distance:1.08×1.08mm
※ viewable size (w/h):920×518mm;42inch/1,056mm(diagnol)
※  driver:8-bit RGB
※ color:16.8million
※ plasma and anti-reflection screen
frequency range:fH:15.6kHz-100kHz;fV:48Hz-120Hz
※ exampling ratio:12.5-50MHz max offset
※ dot clock:30MHz
※ size(w/h/d):1035×635×152mm(40 3/4×25×6 3/4
inch
※ weight: approx. 47kg(approx. 103 1b 10 oz)
