OVERVIEW
The

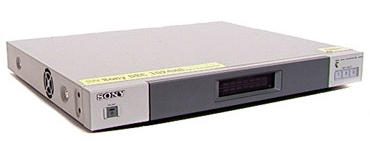

DSC-1024HD is an anything in anything out kind of
box. It allows for VGA, S-VGA, PAL Video, SECAM Video
and NTSC Video and analog component inputs. It can
convert any of these input signals to VGA, S-VGA,
PAL Video, SECAM Video, HDcam component or NTSC Video
for output.
FEATURES
-
Versatile upward and downward digital scan
converter
-
Input accepted in the 15.6 to 70 kHz
horizontal frequency range and the 50 to 120
Hz vertical frequency range and output at an
industry standard 15.6 kHz, 31.5 kHz, 33.75
kHz 91080i*), 37 kHz, 48 kHz or 64 kHz
frequency
-
Built-in transcoder: for universal
conversations between video signal formats
-
Genlock function is available
-
PAL/NTSC conversion capability
-
Scan doubler capability
-
Automatic input signal recognition
-
Variable offset sampling and high density
vertical interpolation capability for
conversion resolutions
-
Adjustable aspect ratios
-
Built-in test pattern generator
-
Zoom, pan and freeze frame: functions
provided for easy operation
-
On-screen display: for adjustment/
operation
|
|
SPECIFICATIONS
GENERAL
-
Power requirements: AC 100 to 120 V, 0.4 A
(max.), 50/60 Hz
-
Power consumption: 30 W (max. power on), 3 W
(typical power off)
-
Operating temperature: 0 to 35°C (50 to 96°F)
INPUT CONNECTOR
-
Video 1
-
Composite: Loop-through BNC
-
S Video: Loop-though 4-pin mini DIN
-
Video 2
-
Composite (Composite/-/-)
-
Component (G/B/R, Y/B-Y/R-Y): Loop-though D-sub
15-pin
-
Video 3
-
Component (G/B/R, Y/B-Y/R-Y): Loop-through, D-sub
15-pin
-
Audio 1/2/3
OUTPUT CONNECTOR
-
Video Out
-
Composite: BNC
-
S Video: 4-pin mini DIN
-
Component (G/B/R, Y/B-Y/R-Y): D-sub 15-pin
-
Audio
SIGNAL LEVEL
-
Composite
-
1 Vp-p (typical)
(Video 1: Automatic 75 ohms termination,
Video 2: 75 ohms/Hi-Z)
-
S Video
-
Y: 1 Vp-p (typical), sync negative
-
C: 0.286 Vp-p (NTSC)/0.3 Vp-p (PAL) (typical)
Automatic 75 ohms termination
-
Component
-
G/B/R Input
-
0.714 Vp-p (typical) (Video 2: auto sync, Video 3:
sync on G/external sync, switchable), 75ohms/ Hi-Z
HV.sync/c. sync: 1~5 Vp-p
-
G/B/R Output
-
0.714 Vp-p (typical) (with external sync), 75ohms
(typical) HV.sync/c.sync: TTL
-
Y/B-Y/R-Y Input
-
0.7 Vp-p (typical) (NTSC/PAL, sync on Y), 75 ohms/
Hi-Z
-
Y/B-Y/R-Y Output
-
0.7 Vp-p (typical) (with sync on Y), 75 ohms
(typical)
FORMAT CONVERSION
-
Capture range: fH: 15.6 to 70 kHz, fV: 50 to
120 Hz
-
Sampling rate: 14.3 to 40 MHz offset phase max.
(Equivalent to 80MHz sampling)
-
Output pixel clock: 14.3 to 50 MHz
-
Line doubler: Line doubled vertically for each
field
-
Genlock:
-
Reference: Black/burst signal on VIDEO 1 input
-
Applicable to NTSC/PAL outputs only
-
Genlock ON/OFF, SCH adjustment
-
Picture adjustment:
-
CONTRAST/PHASE (except for RGB/YBR/PAL)
-
CHROMA (except for RGB)
-
SIZE/CENTER/ZOOM (x2, x3, x4)/ APERTURE (ON/OFF)/
STILL (ON/OFF)
|
